Fleet synchronisation

Synchronise multiple scrollers for a perfectly coordinated display

The NOVAL synchronisation system enables to display posters simultaneously on several pieces of furniture, in order to create a consistent and perfectly coordinated campaign.

Depending on the site configuration, synchronisation can be carried out via a wired connection, via 868 MHz radio or via GPS. One of the key benefits of the GPS solution is that it enables the synchronisation of assets located at a distance from one another, with no connection between them and no limit on the distance.

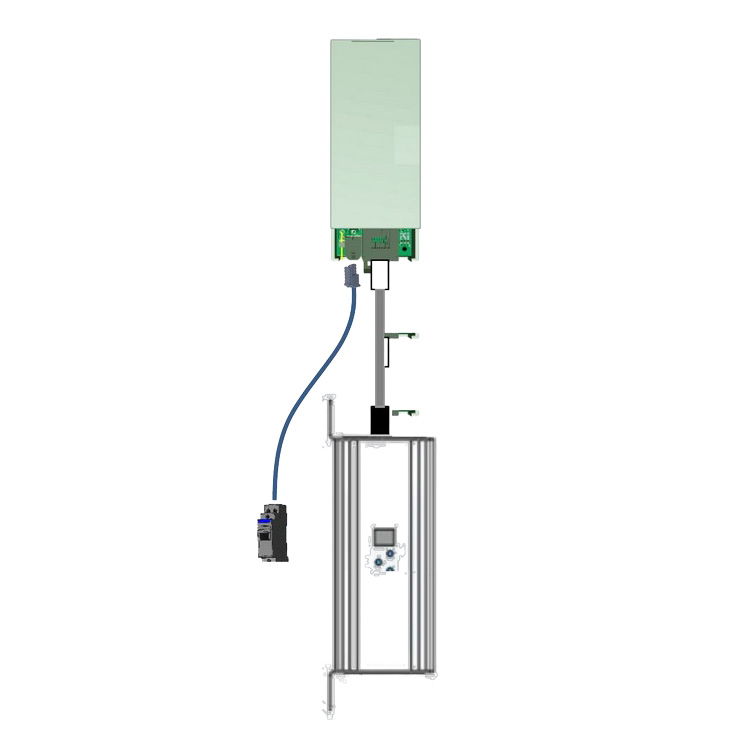

The GPS module NL2912 connects directly to the unwinder’s electronic control unit and automatically retrieves its settings, without the need for on-site adjustment. It can also control the lighting at sunrise and sunset thanks to its GPS location.

This solution therefore makes it possible to synchronise both two sides of the same piece of furniture rather than a whole collection, regardless of the site’s configuration.

• No distance limit: In GPS mode, no connection is required between the units — the display units across an entire city can scroll in unison
• 868 MHz radio with no subscription: a dedicated channel for each furniture group, with no SIM card or call charges
• No on-site adjustment required: The module automatically reads the unwinder’s settings and is ready for use within a minute of being connected
• Lighting control: A relay output switches the lighting on and off at sunset and sunrise, depending on the GPS position
• Immediate diagnosis: Three indicator lights show the module’s status, communication with the feed-through unit and the quality of the satellite signal reception
• From the double-sided version to the entire park: wired, radio or GPS synchronisation — the mode is selected according to the site’s geographical location, without any changes to the reel

• References: NL2912 — GPS module; NL0034 AFR and NL0035 AFR — 868 MHz radio modems
• Constellations in operation: GPS, GALILEO and GLONASS — at least 4 visible satellites
• Receiver sensitivity: −165 dBm
• Power supply for the GPS module: 9–30 V DC — maximum current of 0.1 A
• Connection: AT1409 cable connected to the S1/GSM/SLAVE socket on the electronic control unit
• Commissioning: Automatic parameter detection, no adjustment required — up and running in a minute at most
• Synchronisation mode: applied to «poster number» — Sy = 2
• Prerequisites between unrollers: the same number of posters, the same scroll time (td) and the same pause time (tp)
• Multiple slaves: several dispensers, for example a double-sided unit, connected to a single module via the AT1408 cable
• Signage: 3 indicator lights — red for the module, green for communication with the feed-out unit and blue for satellite reception
• Lighting relay output: 24 V – 100 mA maximum — switching at sunrise and sunset
• Radio link: 868 MHz — 2.4 kbit/s via radio, with a transmission power of 14 dBm, and 1,200 bit/s via serial connection
• Radio channels: one channel per group — separate channels for two groups less than 4 km apart
• Limitations on the use of GPS: sufficient headroom required — cannot be operated underground or in a steel-framed building
